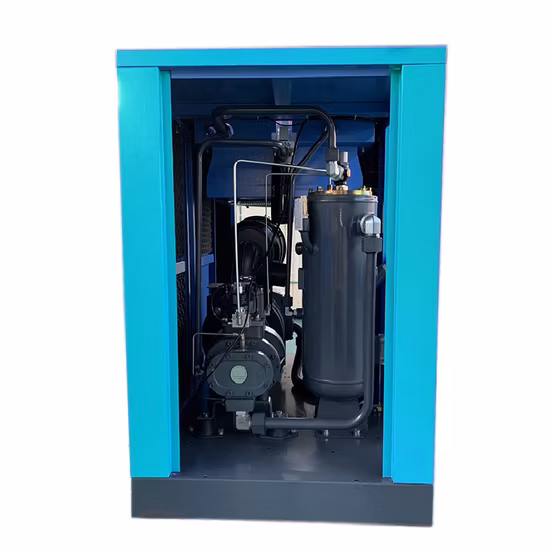

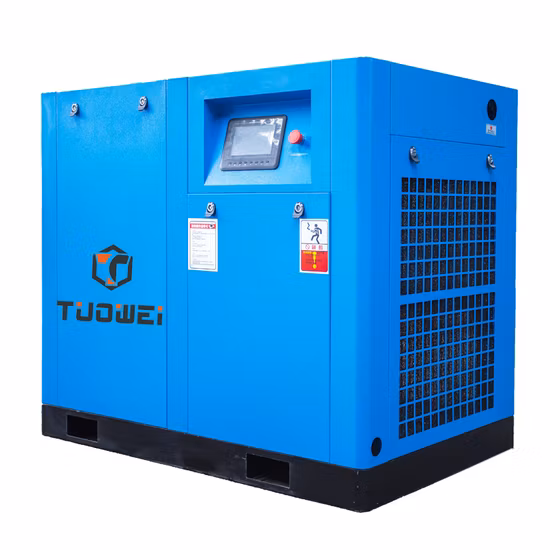

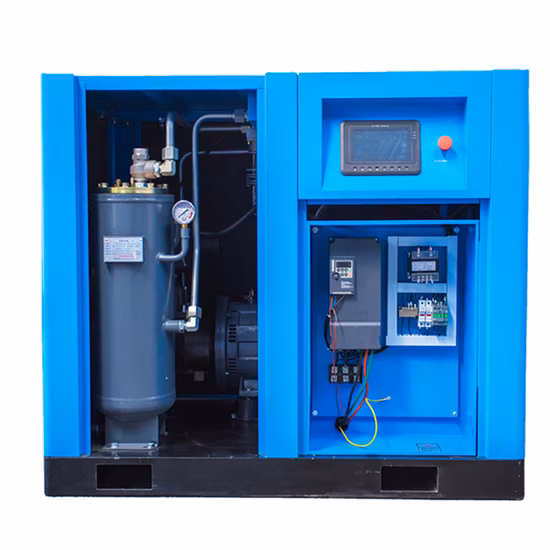

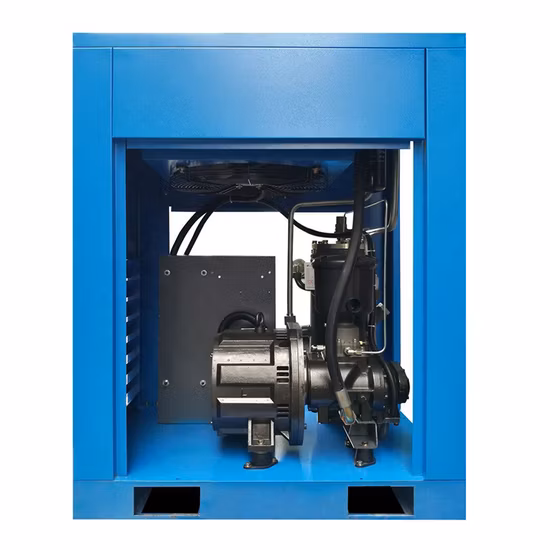

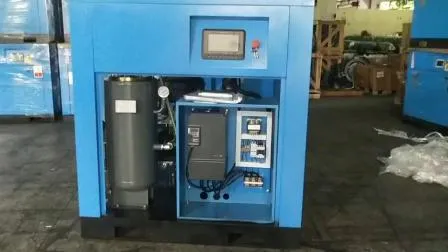

Industry Low Pressure Screw Air Compressor for Glass Manufacturing (37kw 50HP)
Basic Info.
| Model NO. | SGD 37( Low pressure ) |
| Type | Single Screw Compressor |
| Voltage | 220V, 380V, 415V or Customized |
| Motor Protection Level | IP54 |
| Noise | Low Noise |
| OEM | Acceptable |
| Application | Manufacturing Plant |
| Insulation Class | F |
| Advantages | Energy Saving |
| Pressure | 3~5 Bar |
| Bearing | SKF |
| Capacity | 8.24~11.02 M3/Min |
| Engine Power | 37 Kw /50 HP |
| Driven Method | Driect Driven |
| Air End | Baosi |
| Product Name | Industry Low Pressure Screw Air Compressor |
| Transport Package | Standard Export Wooden Packaging |
| Specification | 1750*1200*1500mm |
| Trademark | Tuowei |
| Origin | Fujian. China |
| HS Code | 8414804090 |
| Production Capacity | 300 |
Product Description
| Model | SGPM 37 | ||
| Type of Cooling | Air Cooling/Water cooling | ||
| Working Pressure(psi/ bar) | 43.7/3 | 58.2/4 | 72.8/5 |
| Air Delivery(cfm / m3/min) | 389.33/11.02 | 333.68/9.36 | 291.11/8.24 |
| Motor Power(kw/hp) | 37/50 | ||
| Starting Mode | Star triangle start | ||
| Type of Driving | Driect driven | ||
| Dimension (mm) | 1750*1200*1500 | ||
| Weight(kg) | 920 | ||
| Air Outlet Pipe Diameter | 2" | ||
| Voltage | 380(220,400,415)V/50(60)Hz/3Phaseor Can be customized | ||
| Exhaust Oil Volum | 1~3ppm | ||
| Noise (db) | 68±2 | ||
| Outlet Air Humidity (ºC) | ambient temperature+15ºC | ||
| Model | Capacity | Pressure | Spssd | Pipe Diameter | Weight | Noise | Dimensions |
| m3/min | bar | rpm | KGS | Db(A) | L*W*H mm | ||
| SGPM 37 | 11.02 | 3 | 3050 | 2" | 920 | 67±2 | 1750*1200*1500 |
| 9.36 | 4 | 2600 | |||||
| 8.24 | 5 | 2300 | |||||
| SGPM 45 | 10.8 | 4 | 3000 | 2" | 950 | 67±2 | 1750*1200*1500 |
| 10.02 | 5 | 2800 | |||||
| SGPM 55 | 17.3 | 3 | 2600 | 2" | 1150 | 67±2 | 1750*1200*1500 |
| 15.34 | 4 | 2300 | |||||
| 13.31 | 5 | 2000 | |||||
| SGPM 75 | 23.01 | 3 | 3100 | DN65 | 2850 | 70±2 | 2500*1600*1800 |
| 19.71 | 4 | 2940 | |||||
| 17.97 | 5 | 2700 | |||||
| SGPM 90 | 22.14 | 4 | 3000 | DN65 | 2950 | 70±2 | 2500*1600*1800 |
| 20.67 | 5 | 2800 | |||||
| SGPM 110 | 34.07 | 3 | 2400 | DN100 | 3800 | 72±2 | 3000*1600*1900 |
| 29.48 | 4 | 2100 | |||||
| SGPM 132 | 39.83 | 3 | 3000 | DN100 | 4000 | 72±2 | 3000*1600*1900 |
| 35.20 | 4 | 2800 |
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
